The Dynomerk flashPro suite of solutions facilitates the downloading of a software code into the hardware of Electronic Control Units (ECUs) during the engineering and manufacturing phases, as well as in the assembly shop.
This process can be conducted either online, with direct ECU flashing which is the process of installing or updating Data stream on an ECU, commonly referred to as “flashing” and is an essential process that transforms ECU hardware into a fully functional controller prior to being assembled into a vehicle, or offline by pre-flashing the ECUs in advance, all done with ease and efficiency.
The average flashing time for an ECU can vary between one to three minutes, and most of this time doesn’t require active inputs from an operator. Once the new software has been flashed, it’s common to verify that the process completed successfully through CAN communication.
Furthermore, the architecture of the system is designed to adapt to changing environments, with direct ECU access that can successfully manage the emerging challenges posed by performance, data sizes, processes, and security concerns.
The system also allows for parallel flashing of multiple ECUs. DMC designed and programmed a test stand capable of flashing up to four ECUs at a time. Heavy-duty multi-signal connectors located in the back of the test stand provide the necessary connections for power and communication to each ECU thus making it an efficient solution.
Specifications
Functionalities
HEX file flashing
VIN flashing
IQA Flashing
Injector Code Scanning (Barcode)
Decoding of IQA from Injector Code
Protocols
CAN 2.0
SAE J1939
ISO 14230 (UDS)
ISO 15765
Interfaces
USB 2.0
RS 422
CAN
ETH
Advantages
ECU Flashing is done within seconds after Barcode Scanning
Fast retrofitting of software functions
Scalable solution architecture for maximum performance and flexibility
High-quality, robust solutions adapted to the respective application
Easy integration of sequences once developed into further applications
Online DTC Monitoring
Online ECU Parameter Monitoring
Immediate Reports with Barcode printing
Applications
EOL Engine testing
EOL Vehicle testing
EOL electric vehicle testing
Diagnostic Troubleshooting
Features of Application
Well designed software application
Organised in modular architecture
Easy to use User Interface

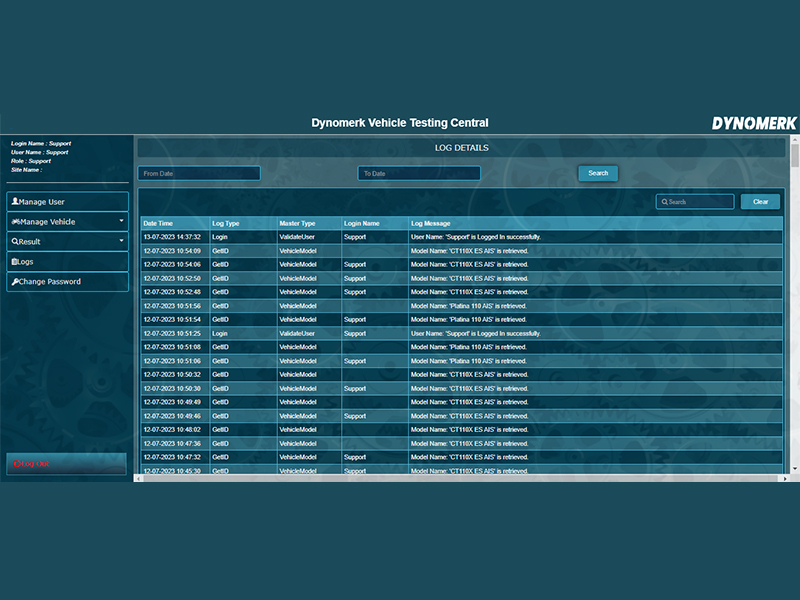

Event logging for easy troubleshooting
Flexible and extensible
